VW T6.1 - Grille Integration Kit Plug & Play

VW T6.1 - Grille Integration Kit Plug & Play

SKU: LP-VW-T6.1-GIK-PP
Category: radiator grille integration kit

Set for radiator grill integration of the TRX 3.0 7 inches

Mount made of ABS in 3D print (UV and weather-resistant)
With custom-fit wiring harness & XBB Wireless relay for the engine compartment
With Bluetooth OBD dongle inside the cabin
Fits only for VW T6.1

Variation

699,00 €

incl. 19% VAT , plus

Choose tax zone / country of delivery

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Description
PDF (1)

With the help of the detailed installation manual, you can install your headlights in the radiator grill of your vehicle yourself.

Mount:

Four high-quality mounts for installing two headlights
Stable mounts made from 3D printed material
Paintable
UV- and weather-resistant ABS material
Fits only for VW T6.1
Headlight alignment on the mount via elongated hole drilling

Headlights:

3rd generation of our popular TRX series
With position light strips in white (ECE approved)
AMBER light strips in orange (Offroad only)
With Offroad Boost Mode function. The Boost Mode can be activated off public roads.
New Anti-Blend reflectors combine concentrated spot and wide-spread flood elements for uniform illumination of the entire field of vision
Complete with mounting materials
Unique stealth design without screws on the front
Use: Public roads with ECE-approved high beam

Technical Specifications:

High beam power: R149: 22.8W | Boost mode: 47.6W
Position light power: R148: 6W
Operating voltage: 10-30 V
Protection class: IP 67
LED chips: 12 pcs x 5W
Effective light output: 1,540 lm | Boost mode: 3,238 lm
Housing color: Black
Color temperature: 5800K
Material: Extruded aluminum housing
Lens material: Polycarbonate
Mounting: Robust aluminum bracket
Light dispersion: Spot 10°
Range: 658 m (0.25 lx), 329 m (1 lx)
Homologation: ECE R149 | R10
Reference number: 25
Dimensions L x W x H (housing): 20.36 x 6.71 x 7.0 cm

Relay Wiring Kit with Dongle

The wiring kit allows for easy connection of the auxiliary headlights. All connections and cable lengths are pre-configured so the installation is quick, easy, and safe.

The wiring kit is simply connected to the battery in the engine compartment, the ground point behind it, and the headlights.
No cables need to be routed into the passenger compartment!

A Bluetooth relay integrated in the wiring kit communicates with the vehicle via an OBD dongle. Thus, the headlights are controlled in sync with the vehicle’s high beam.
The hassle of finding the high beam signal is eliminated, ensuring a non-destructive installation.

The switching between white and orange position lights is possible via a plug connection in the engine compartment.
Before first use, the dongle must be set up via an app: The appropriate protocol for the vehicle must be selected in the app, and the signals assigned. Time required: approx. 5 minutes.

Notes:
The use of the orange position light is only allowed off public roads!
The reference number of the main headlights should be checked by the customer to prevent exceeding the allowed total reference number of 100. This mainly applies to vehicles with standard LED headlights.
For some vehicles, it is necessary to test multiple protocols in the XBB app to find the suitable protocol for the vehicle.

Wiring Kit CAR-ELECTRIC:
Relay wiring kit for two high-performance LED headlights with 4-pin DT connectors

Fits only for headlights LP-TRX3-7E
2x Deutsch connectors 4-pin
Custom-fit wiring kit for connecting two headlights
With relay holder for XBB PowerUnit relay in the engine compartment
High-quality cables and contacts, ring cable shoe type: M6
Made in Reinbek near Hamburg, Germany

XBB Bluetooth Dongle:

XBB Bluetooth dongle for connection to the OBD interface
Setup via app (App name: XBB)
In-app configuration of headlight control
Select from various functions: e.g. coupling high beam to high beam signal, coupling position light to engine running signal

Scope of delivery:

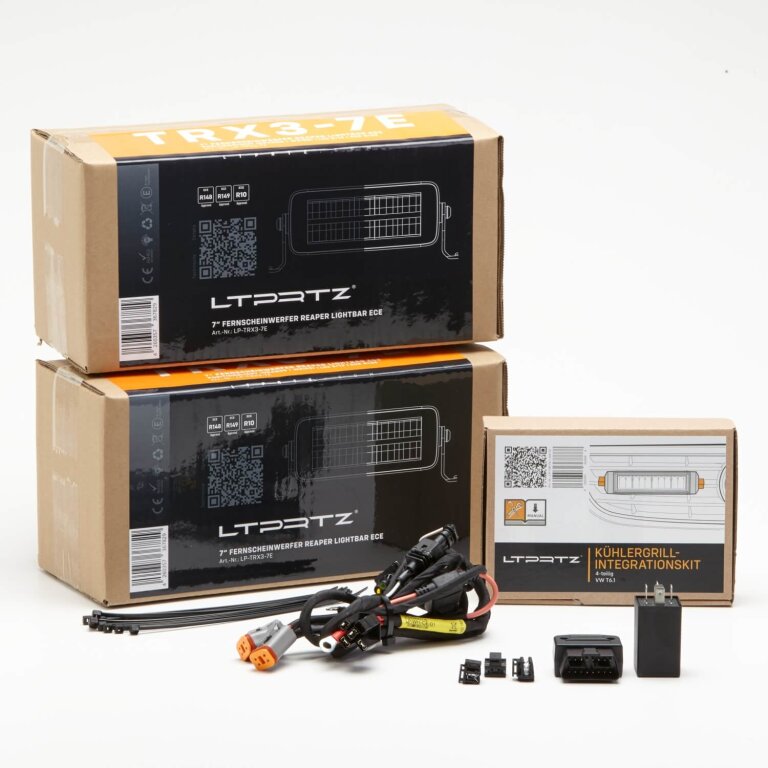

2x TRX 3.0 7 inches
4x ABS mount
1x CAR-ELECTRIC wiring kit
1x XBB Dongle & XBB PowerUnit
