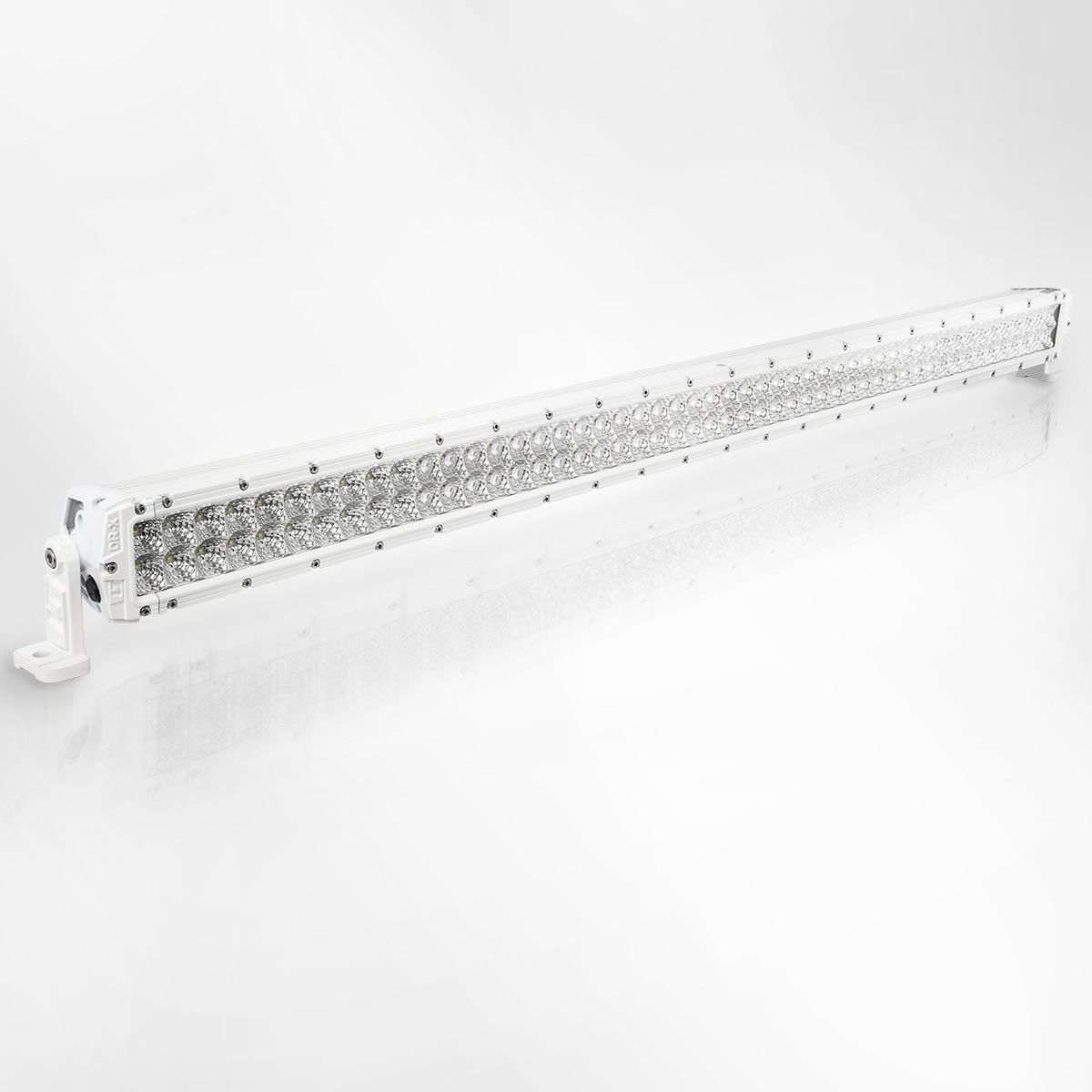

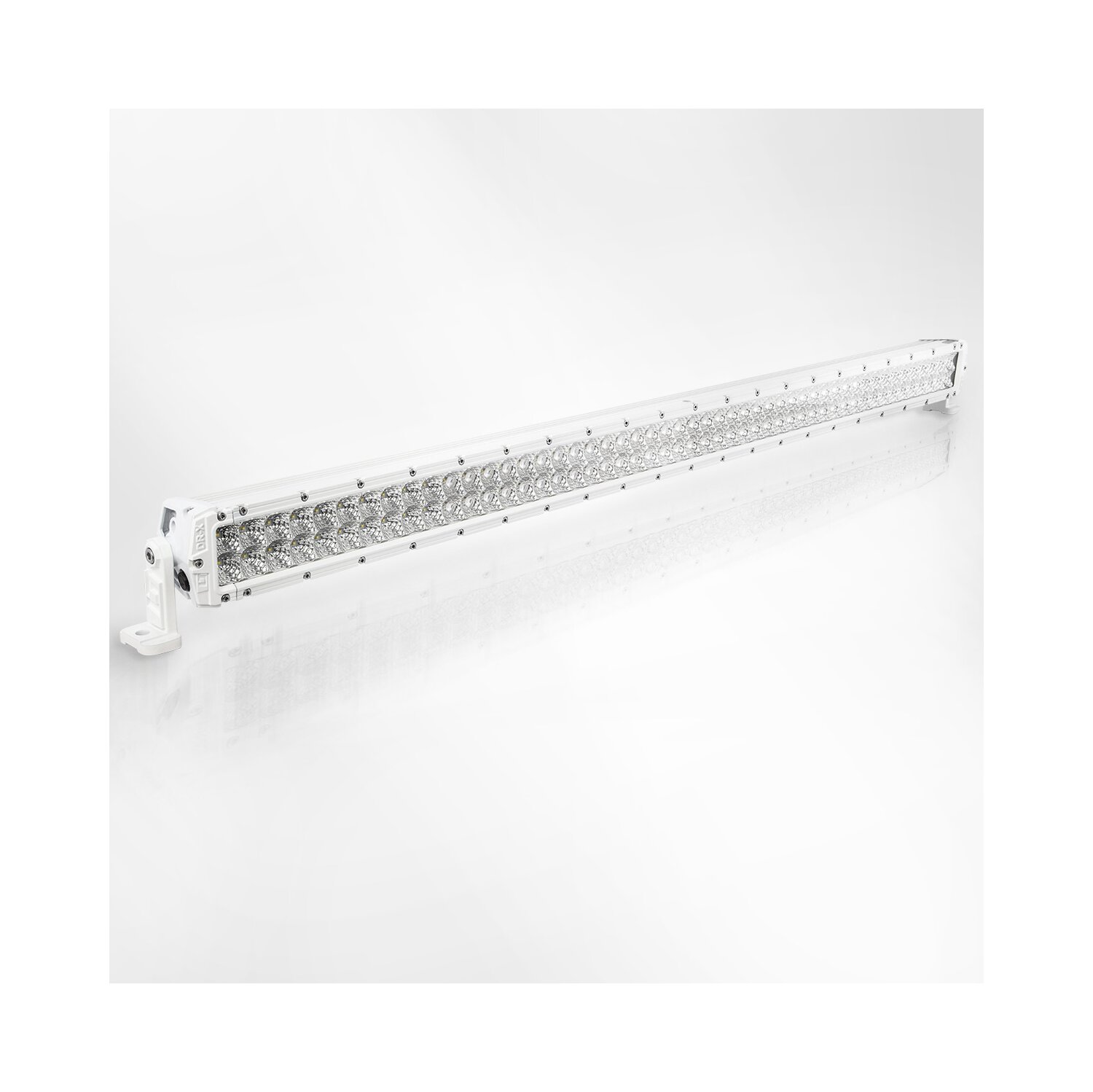

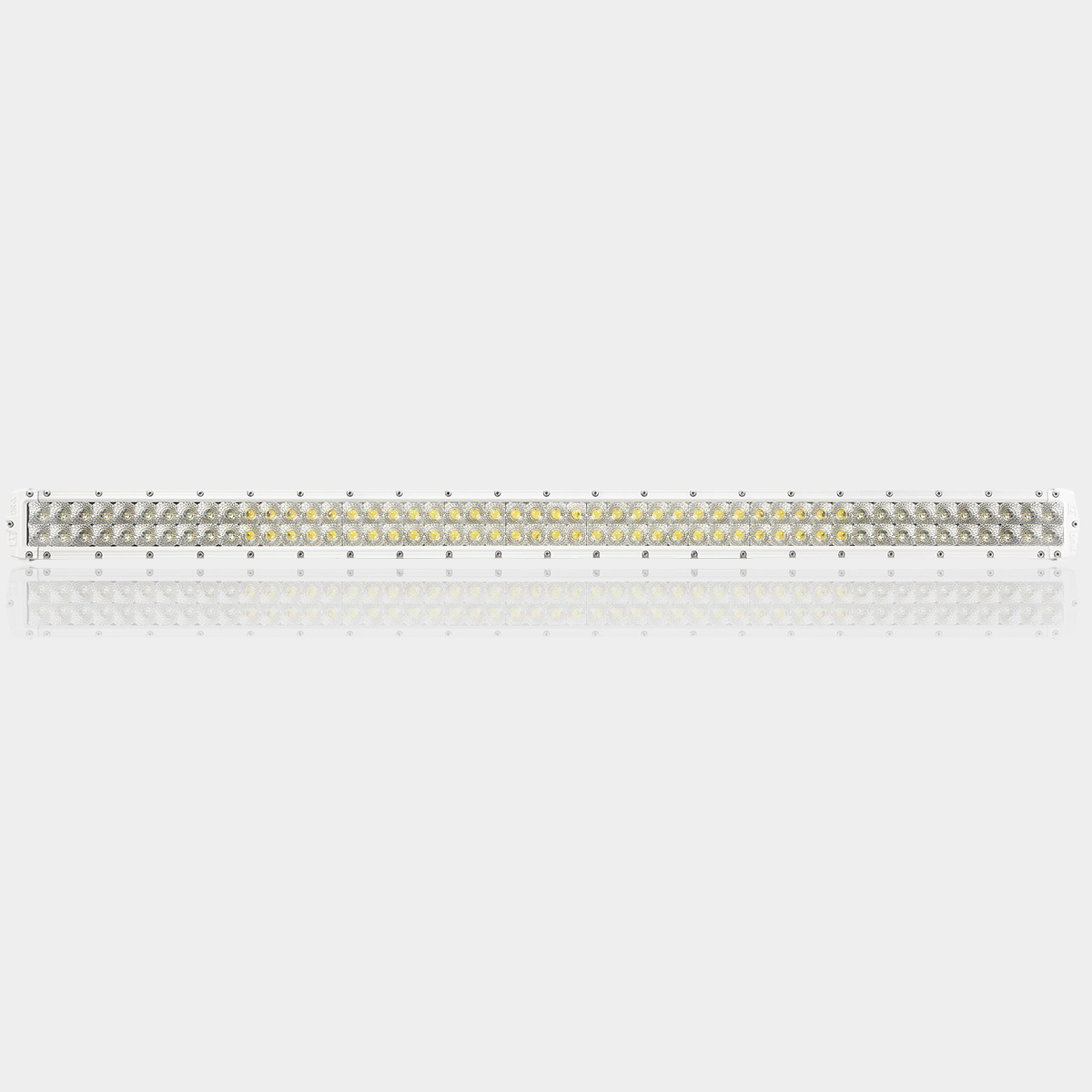

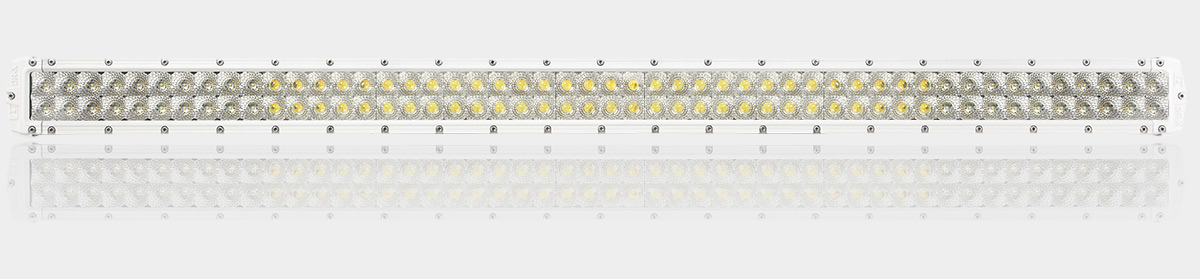

300W dr-x Lightbar 10° 35° OFFROAD
Our most powerful offroad lightbar!
The highly efficient driver circuit transfers 97% of the power directly to the LEDs. The efficiency of 94% provides more light with less power consumption
with less power consumption and longer lifetime.
Specially made oversized cooling fins cool the LEDs. This increases the lifetime with brighter light.
The "Dow corning" silicone gel inside is specially designed for lighting systems and seals over the entire temperature range.

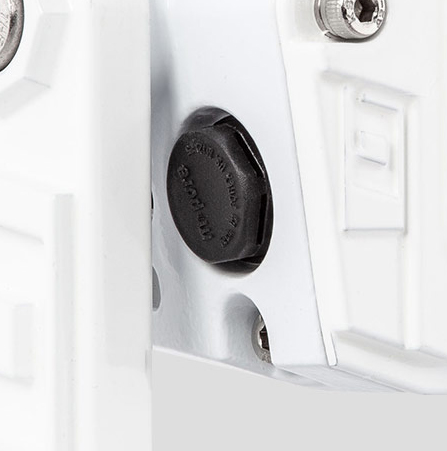

In the event of condensation forming, the M-Pore® pressure equalization valve assists in the escape of moisture. At the same time, the penetration of
of water is prevented.

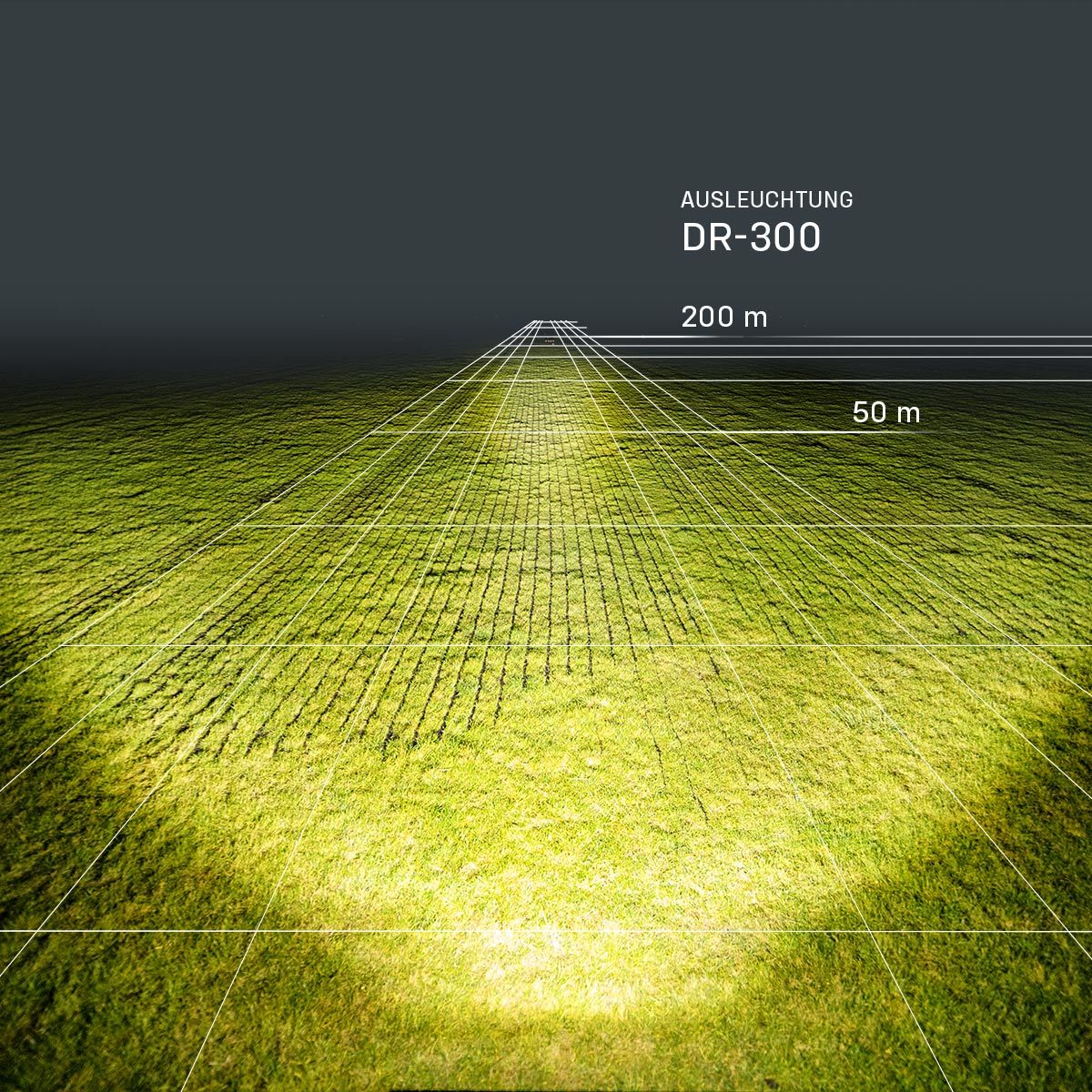

Homogeneous illumination is provided by the combination of 10° spot and 35° floodlight elements. The spotlights are mounted in the center, the floodlights on the
outside. The light cone thus achieves a wide spread at the front next to the vehicle, as well as bundled at a great distance.
This enables anticipatory driving off-road, even at high speeds.
Protected against:
- Reverse polarity
- RFI/EMC interference
- Over- and undervoltage
Special features
- shockproof | dustproof | waterproof IP68
- UV shielded
- anodized TGIc polyester powder coating
- efficient polycarbonate lens reflector
- Ambient temperature: -40° c - +95° c
- Lifetime: + 50.000 hrs.
- M-Pore® Pressure compensating valve
- Superdrive circuit: 97% efficiency
- Dow-corning silicone gel
- Rail profile allows mounting of freely sliding LTPZ-ALBASE on the bottom side
- Homologation: EcE r10 (electromagnetic compatibility)
- Range: 482m (1 Lux), >1000m (0.25 Lux)
Material
- 6063 die-cast aluminum housing
- shatterproof Bayer polycarbonate lens
Scope of delivery:
- 1x lightbar dr300 white

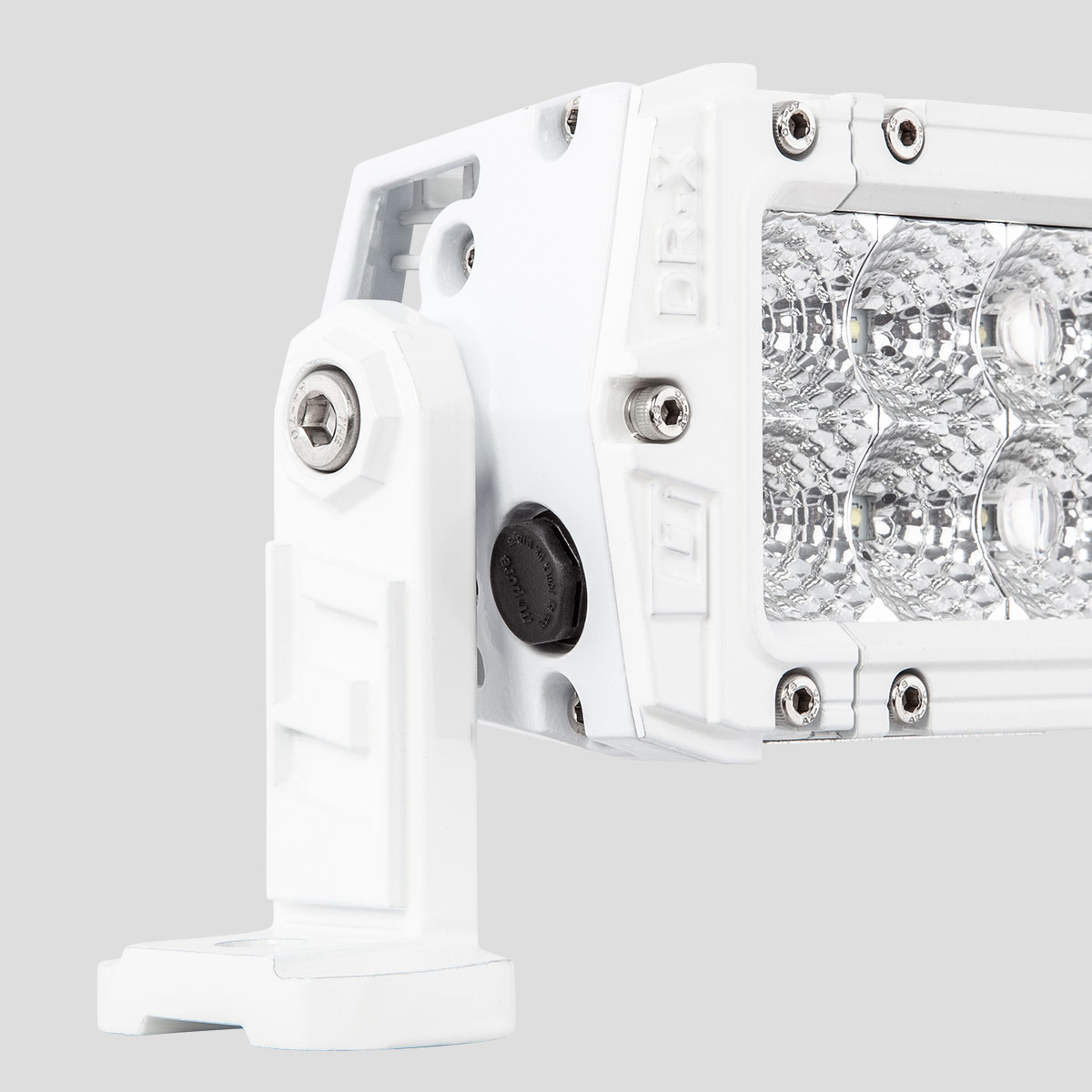

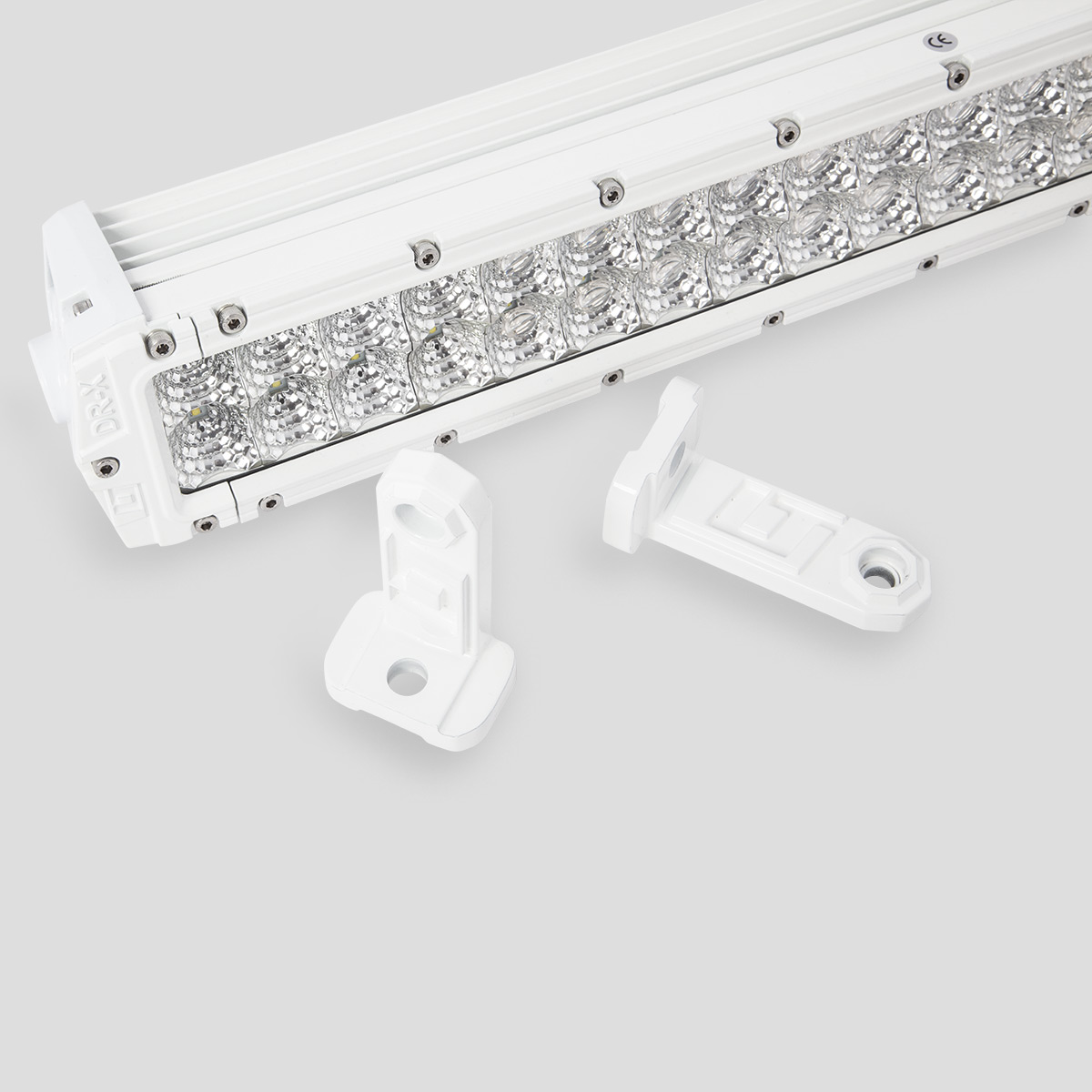

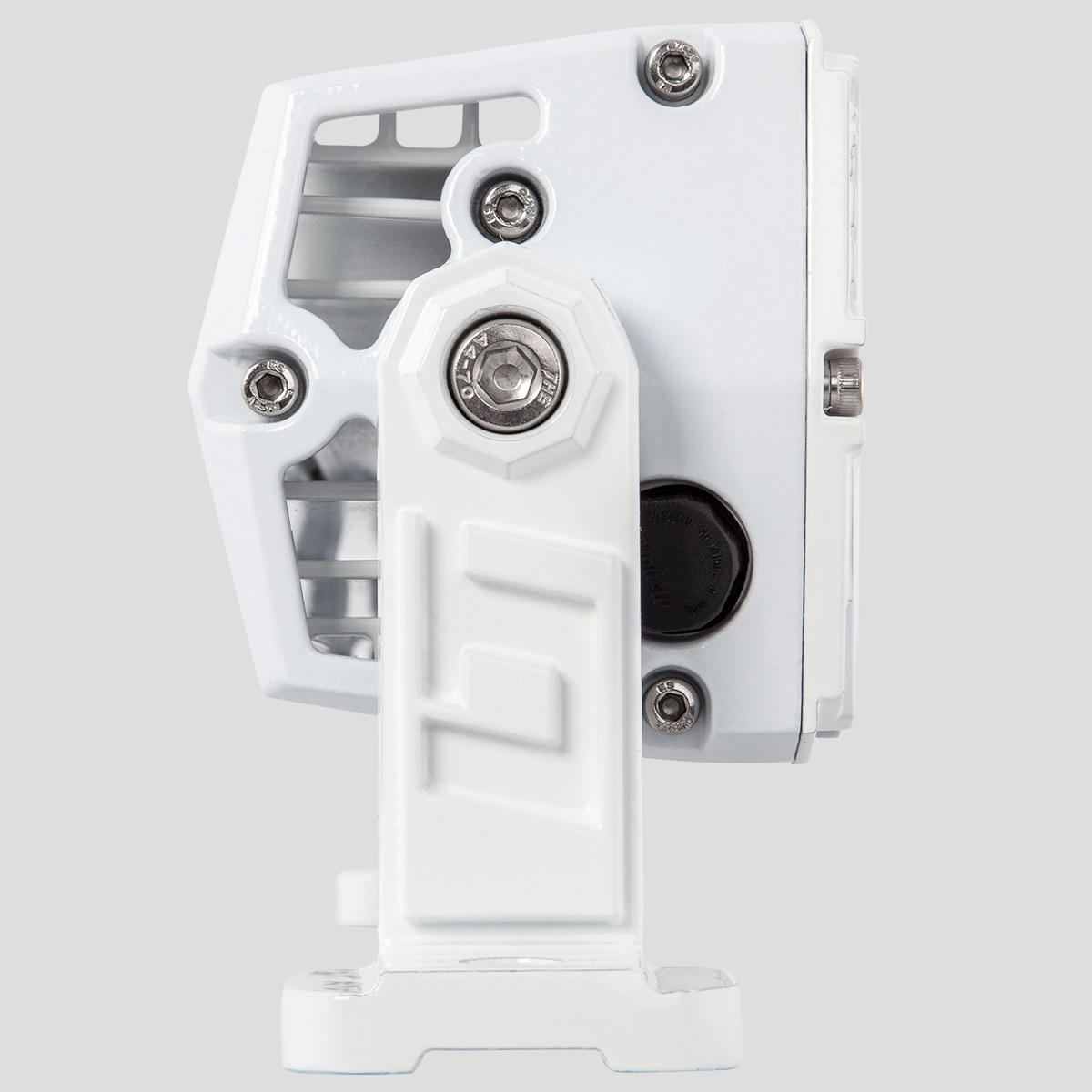

- 2x side feet
- 1x set of mounting screws
| Technical data |
|
| Input voltage |
|
9-32V |
|
| Light source |
|
100x 3w cREE HighEnd chips |
|
| Power consumption |
|
300W |
|
| Light output (raw/eff) |
|
36.000lm / 33,000lm |
|
| Light diffusion |
|
Inside: 10° | Outside: 35 |
|
| Lifetime |
|
+50,000 hrs. |
|
| Protection class |
|
IP68 |
|
| Lens |
|
Bayer polycarbonate |
|
| Housing |
|
Die cast aluminum 6063 |
|
| Mounting |
|
standing |hanging |
|
| Connection |
|
German plug |
|
| Weight |
|
8.75 kg |
|
| Dimensions |
|
1320.8 x 81.3 x 88.9 mm |
|
| Power consumption |
|
12.89A @ 24V |
|
| Homologation |
|
|
|
|
|
|
EcE r10 |
|
General Information:
We use cREE, one of the world's leading LED manufacturers, for the LED chips for our most powerful offroad lightbar,
known for its temperature resistant high-power LEDs. cREE LED chips are finely selected and extremely robust.
Many cree high-power LEDs still reach over 70% of their original brightness after more than 50,000 hours of operation.
