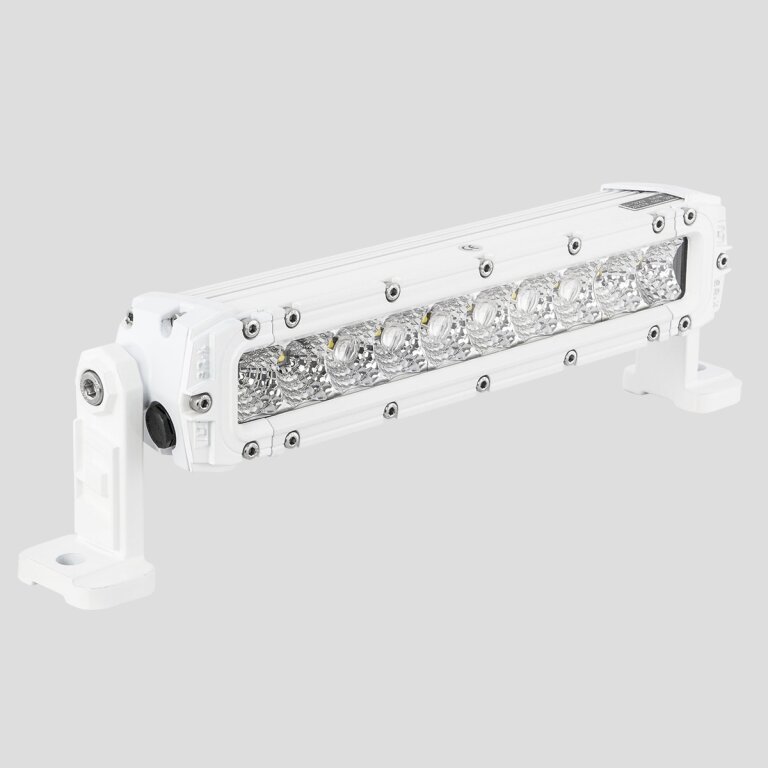

50W sr-x Lightbar 10° 35° MARINE
A salty marine environment can easily lead to corrosion, rust and eventual failure of standard LED lighting products
products. For this purpose, Lightpartz® offers a full range of premium LED lights for harsh marine applications.
accordingly, dr-x Marine is the special marine version of our UltraLux05, which features the following specifications:
Lightpartz® anti-corrosion coating, marine stainless steel mounting screws -and brackets, in addition to the
ultimate output light, your lights will provide years of unrestricted service in the humid environment.
Our most powerful Lightbar!
The highly efficient driver circuit transfers 97% of the power directly to the LEDs. The 94% efficiency provides more light with less power consumption
with less power consumption and longer lifetime.
Specially made oversized cooling fins cool the LEDs. This increases the lifetime with brighter light.
The "Dow corning" silicone gel inside is specially designed for lighting systems and seals over the entire temperature range.

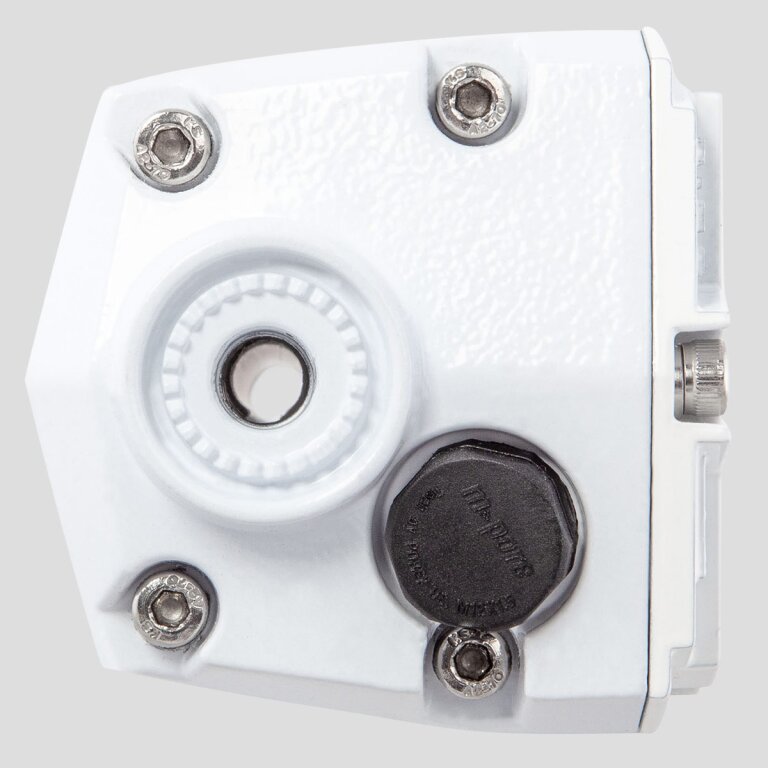

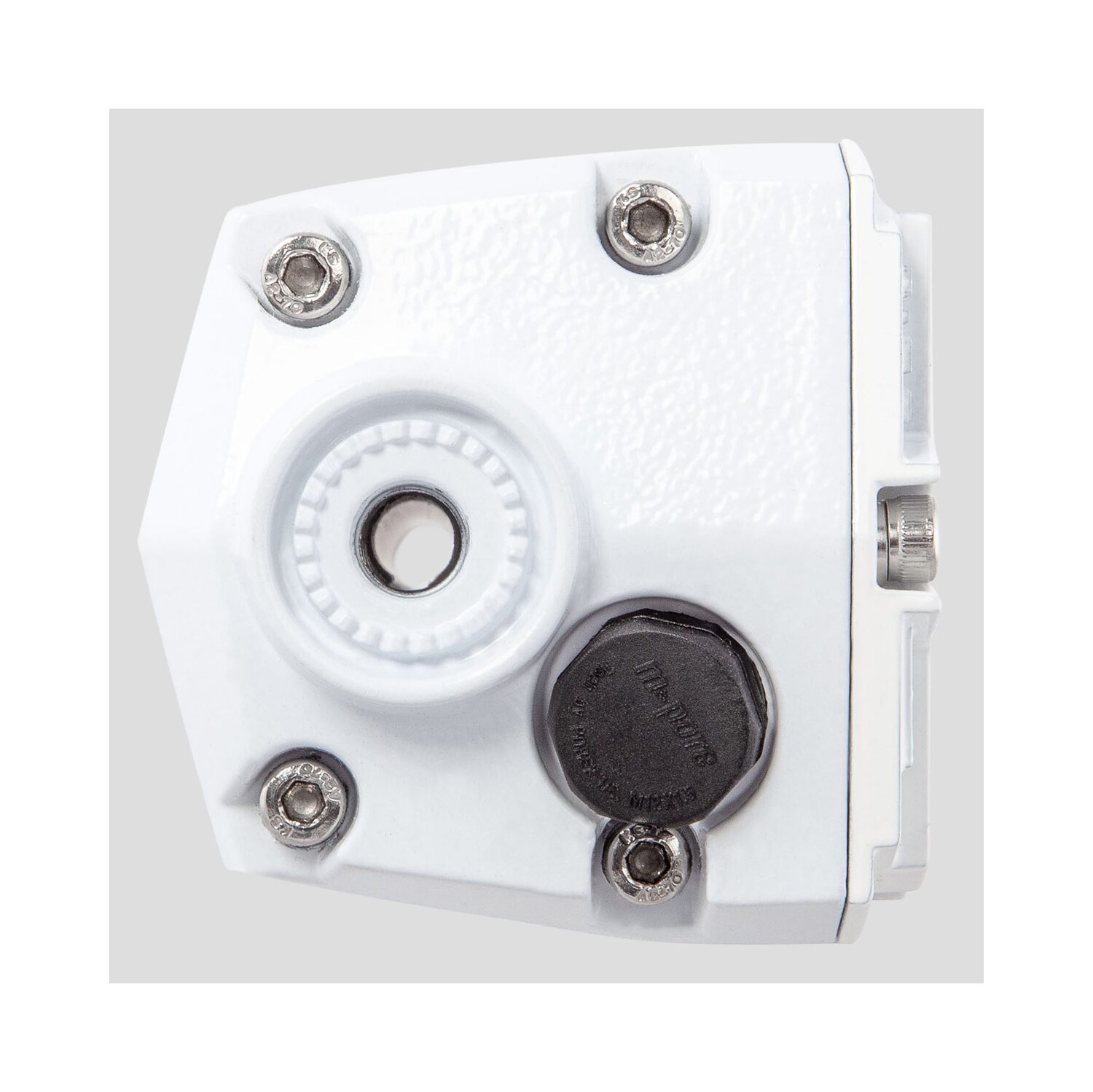

In case of condensation formation, the M-Pore® pressure equalization valve supports the escape of moisture. At the same time, the penetration of
of water is prevented.

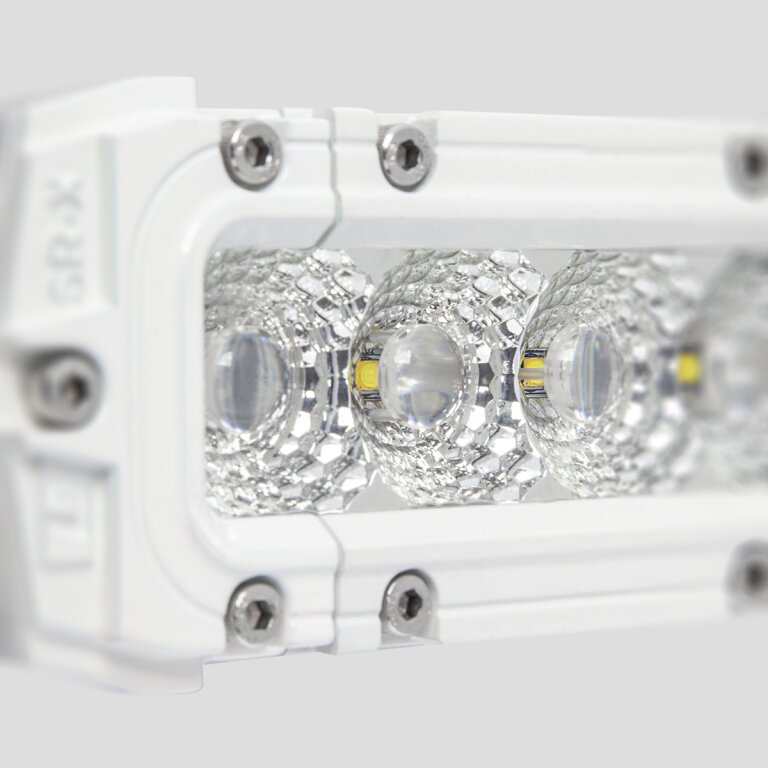

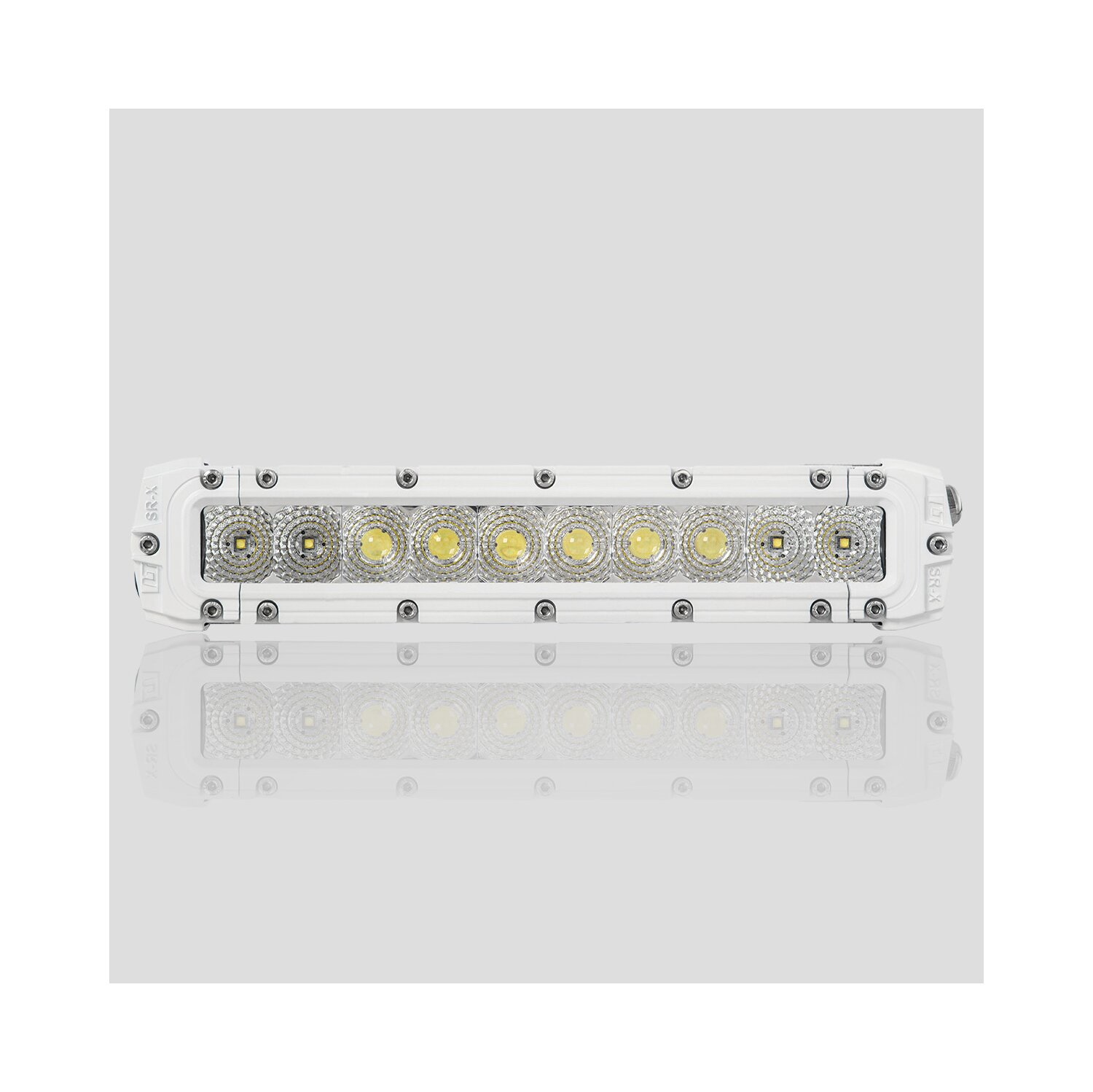

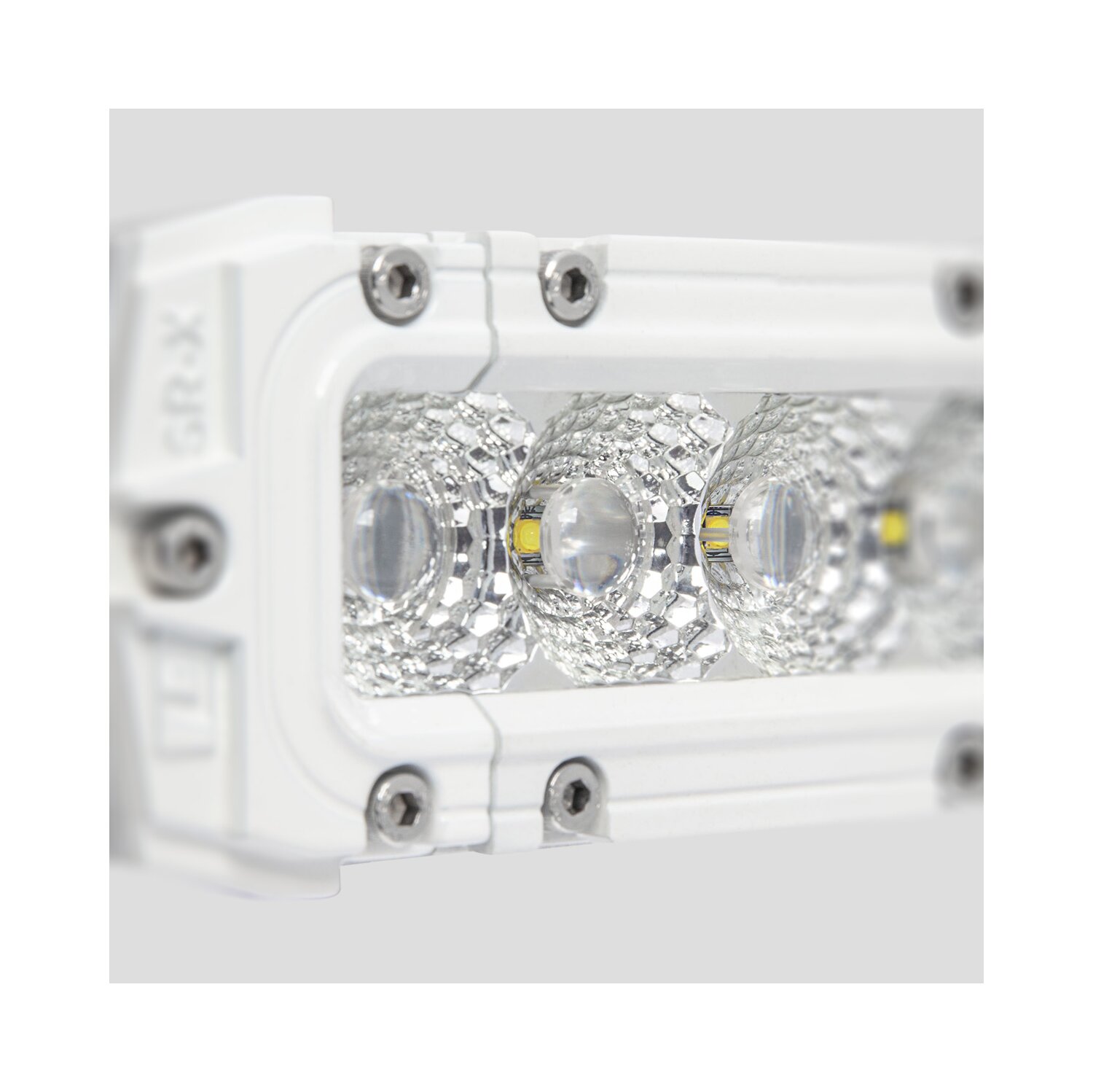

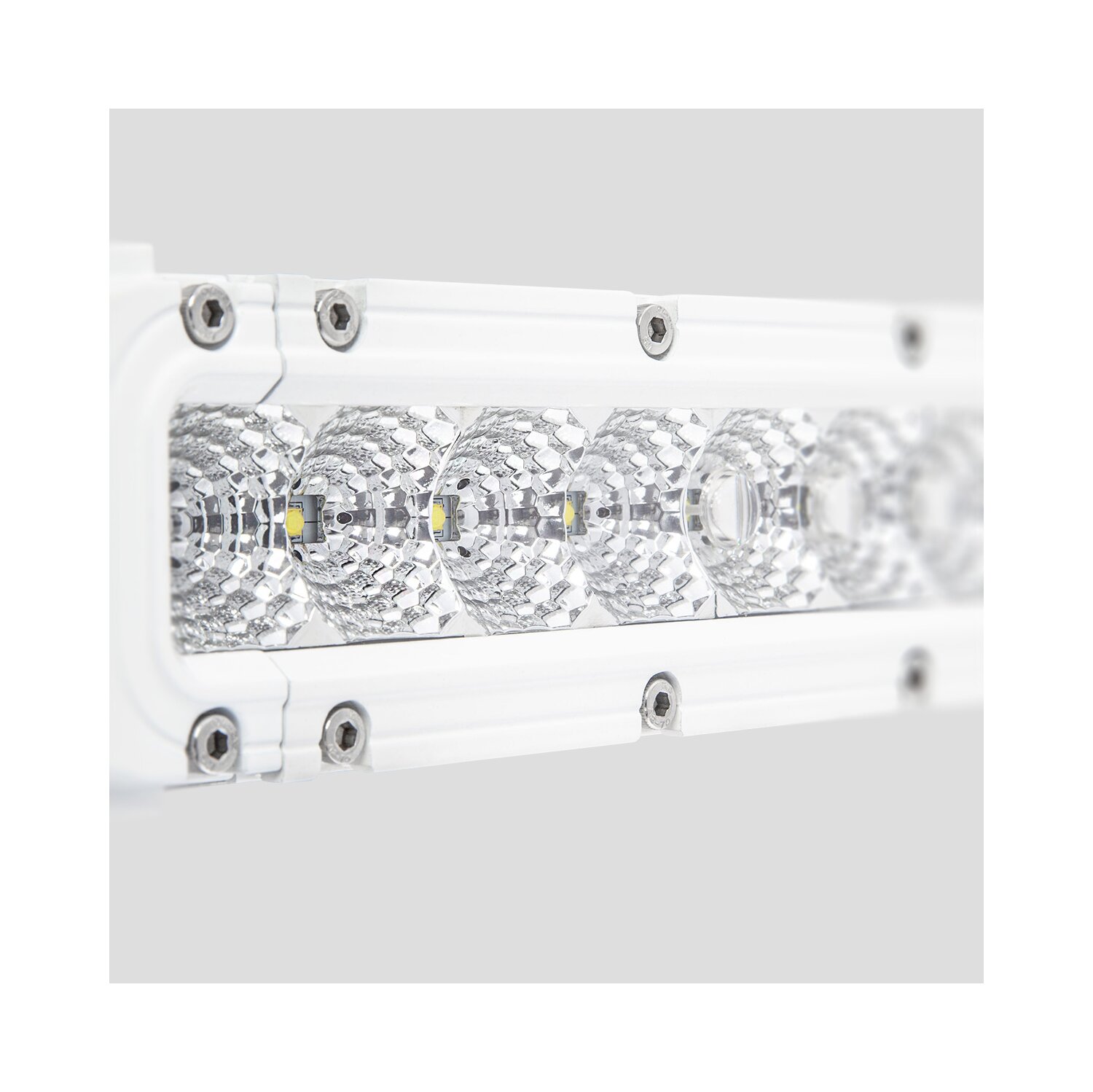

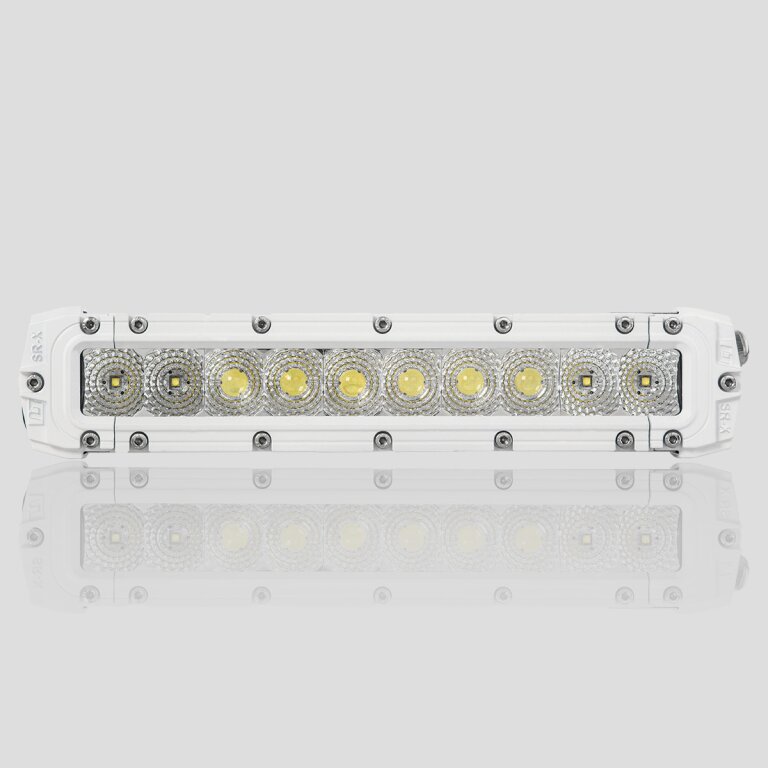

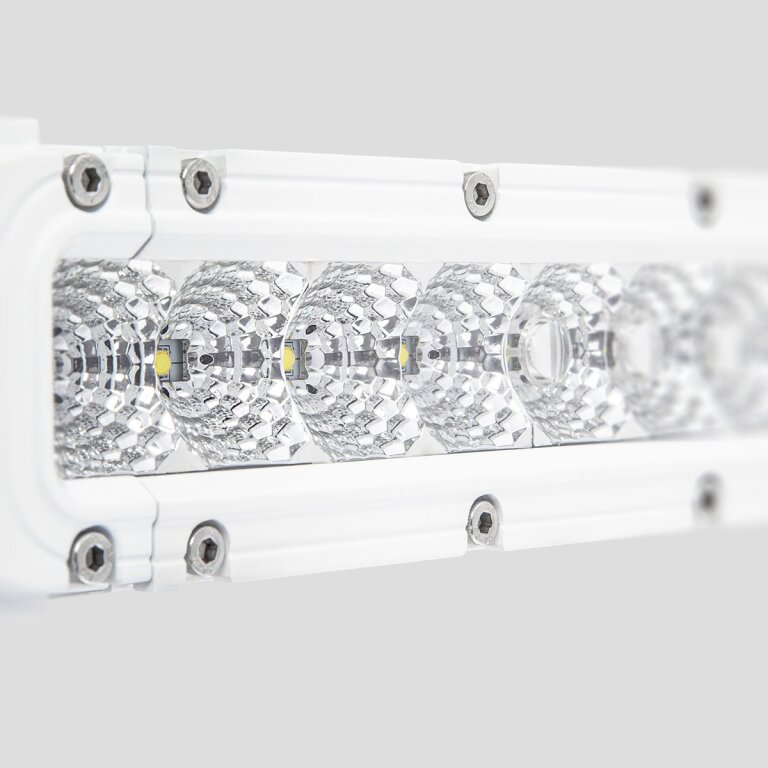

Homogeneous illumination is provided by the combination of 10° spot and 35° floodlight elements. The spotlights are mounted in the center, the floodlights on the
outside. The light cone thus achieves a wide spread at the front next to the vehicle, as well as bundled at a great distance.
This enables anticipatory driving at sea, even at high speeds.
Protected against:
- Reverse polarity
- RFI/EMC interference
- Over- and undervoltage
Special features
- shockproof|dustproof|waterproof IP68
- UV shielded
- anodized polyester powder coating
- Silicone cable
- efficient polycarbonate lens reflector
- Ambient temperature: -40° c - +95° c
- Lifetime: + 50.000 hrs.
- M-Pore® Pressure compensating valve
- Superdrive circuit: 97% efficiency
- Dow-corning silicone gel
- Rail profile allows mounting of freely sliding ltpz-albase on the bottom side
Material
- 6063 die-cast aluminum housing
- shatterproof Bayer polycarbonate lens
Scope of delivery:
- 1x Lightbar SR50

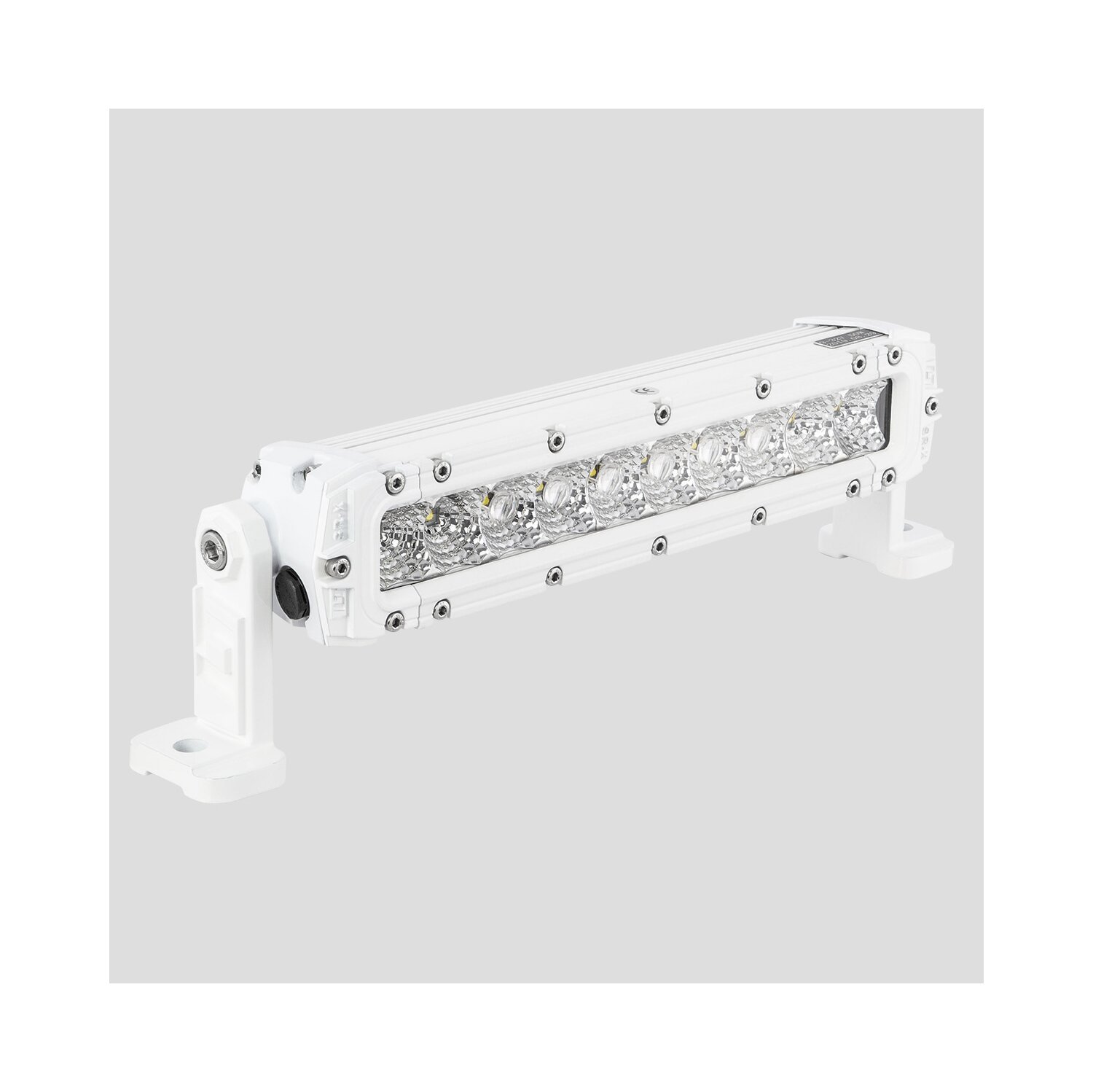

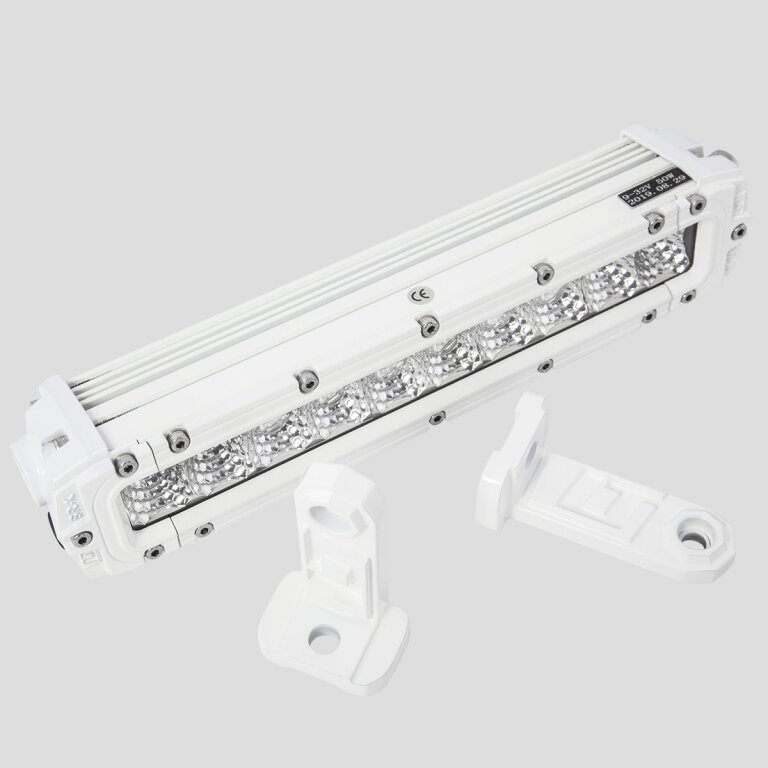

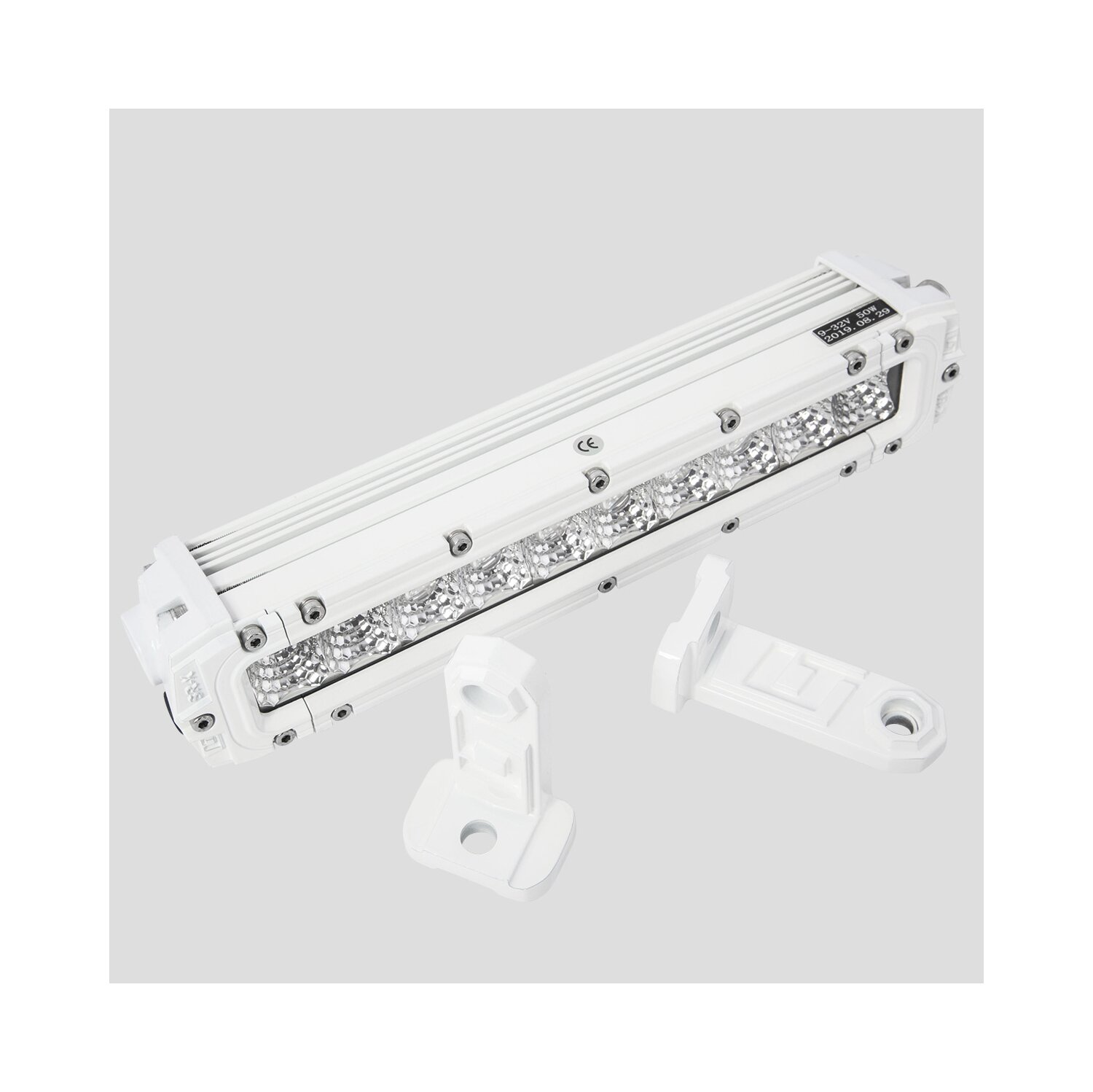

- 2x side feet

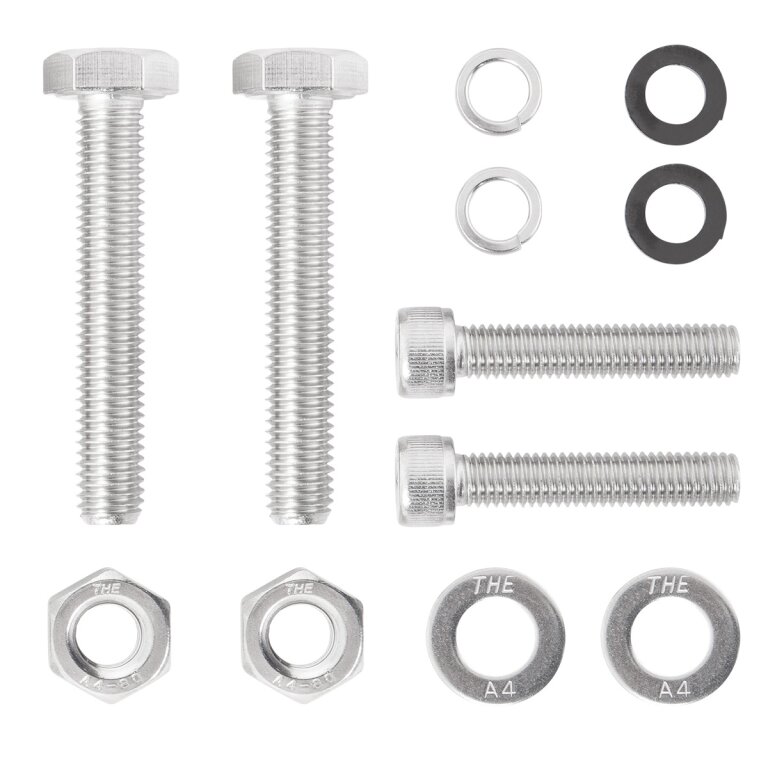

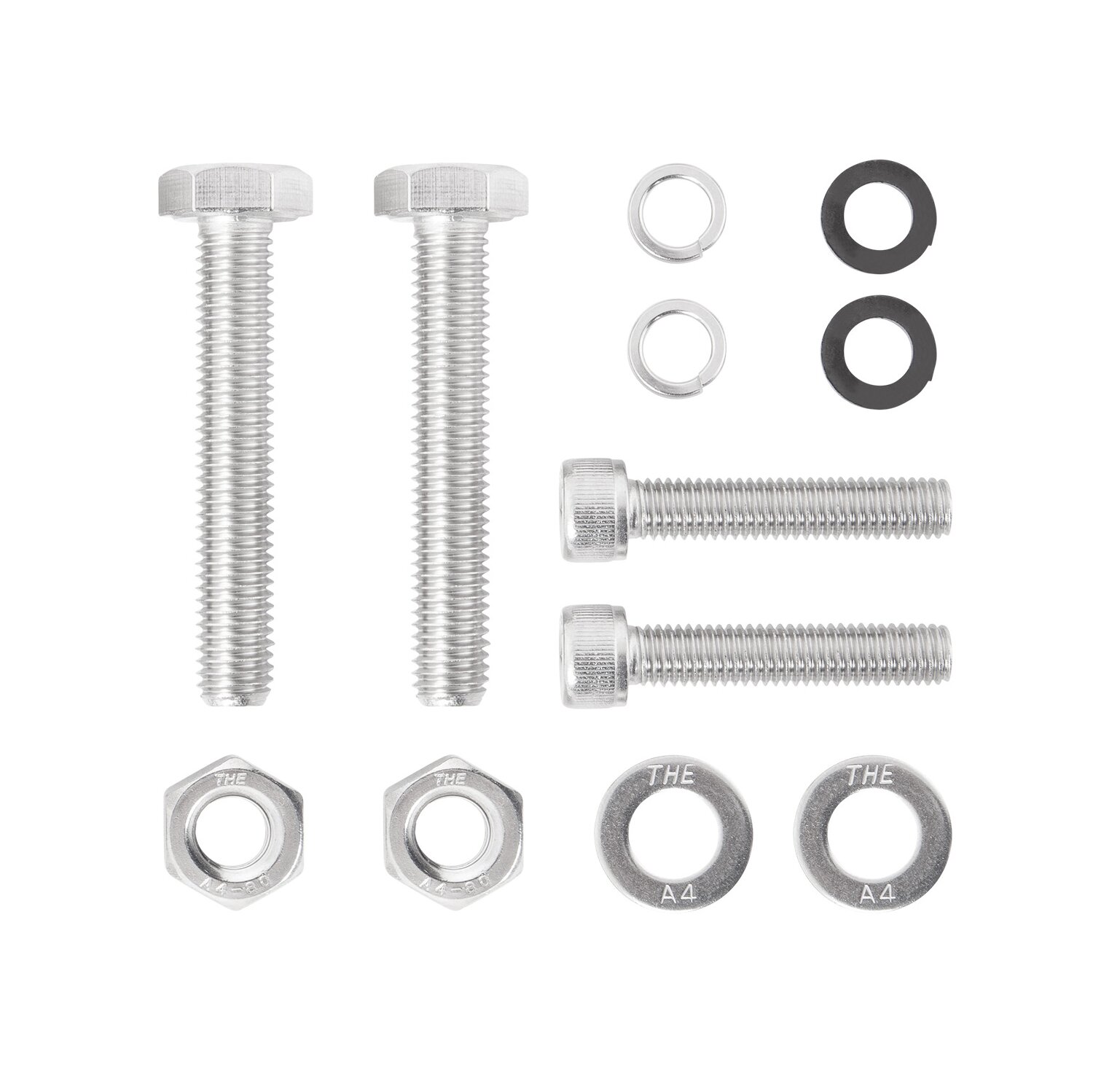

- 1x set of mounting screws
For the use of the sliding mounting feet ltpz-albase we recommend a quantity of 2.
In case of bundle purchase please add them to the shopping cart.
| Technical data |
|
| Input voltage |
|
9-36V |
|
| Light source |
|
10x 5w cREE HighEnd chips |
|
| Power consumption |
|
50W |
|
| Light output (raw/eff) |
|
5.820lm / 5,500lm |
|
| Light diffusion |
|
35° +10° |
|
| Lifetime |
|
+50.000 hrs. |
|
| Protection class |
|
IP68 |
|
| Lens |
|
Bayer polycarbonate |
|
| Housing |
|
Die cast aluminum 6063 |
|
| Mounting |
|
standing |hanging |
|
| Connection |
|
German plug |
|
| Weight |
|
1.80 kg |
|
| Dimensions |
|
304.8 x 63.5 x 66.0 mm |
|
| Power consumption |
|
2.15A @ 24V |
|
General Information:
Lightpartz uses cREE, one of the world's leading LED manufacturers, for the LED chips for their most powerful off-road lightbar,
known for its temperature resistant high-power LEDs. cREE LED chips are finely selected and extremely robust.
Many cree high-power LEDs still reach over 70% of their original brightness after more than 50,000 hours of operation.
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Gutenbergstraße 4
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Gutenbergstraße 4
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
| Shipping weight: |
2,50 kg
|
| Item weight: |
1,80 kg
|
| Dimensions
( Length × Width × Height ):
|
30,48 × 6,35 × 6,60 cm |
